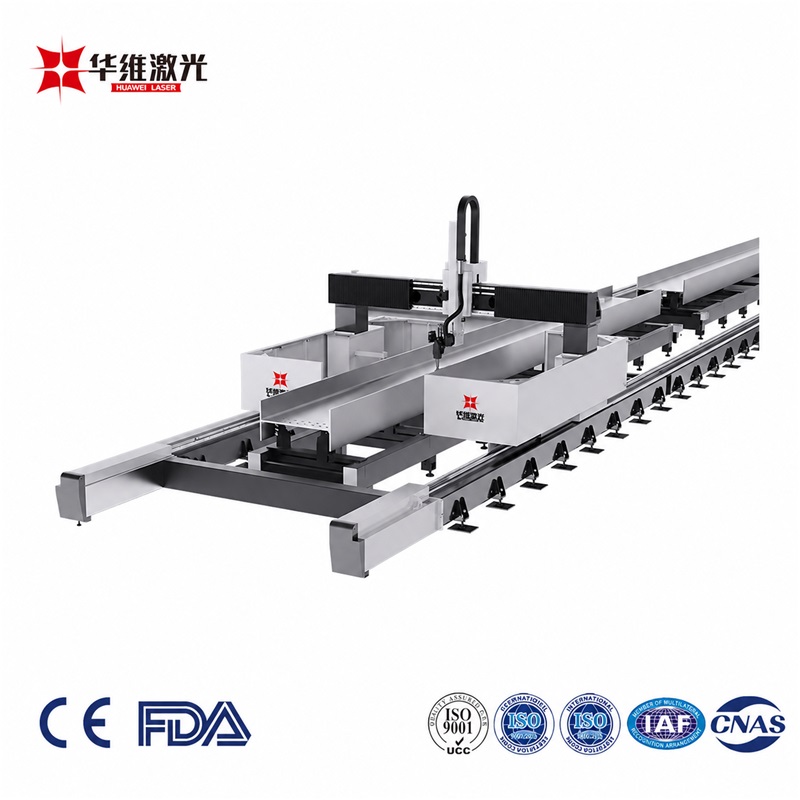

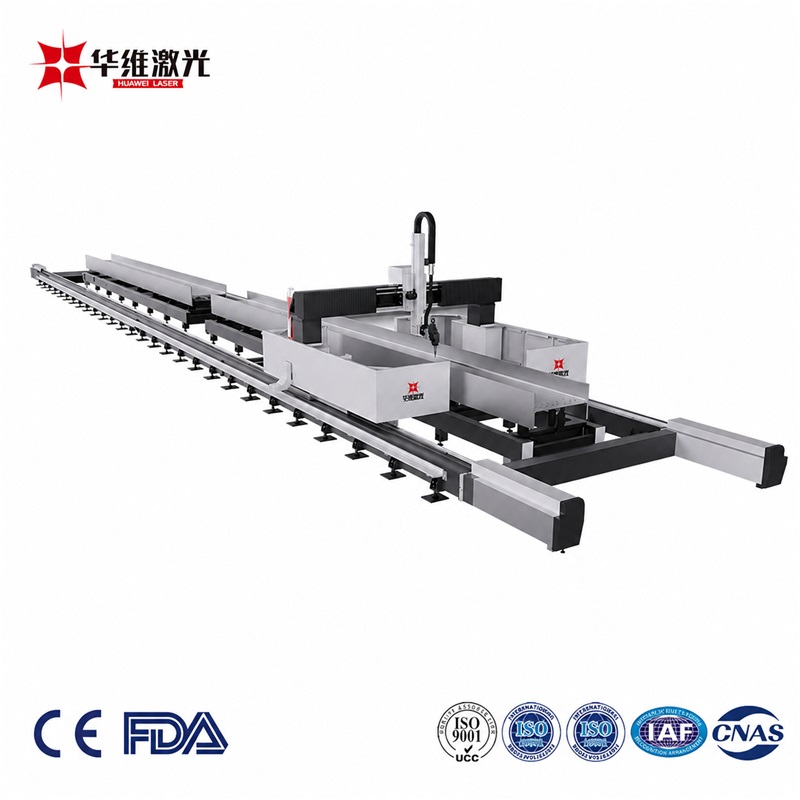

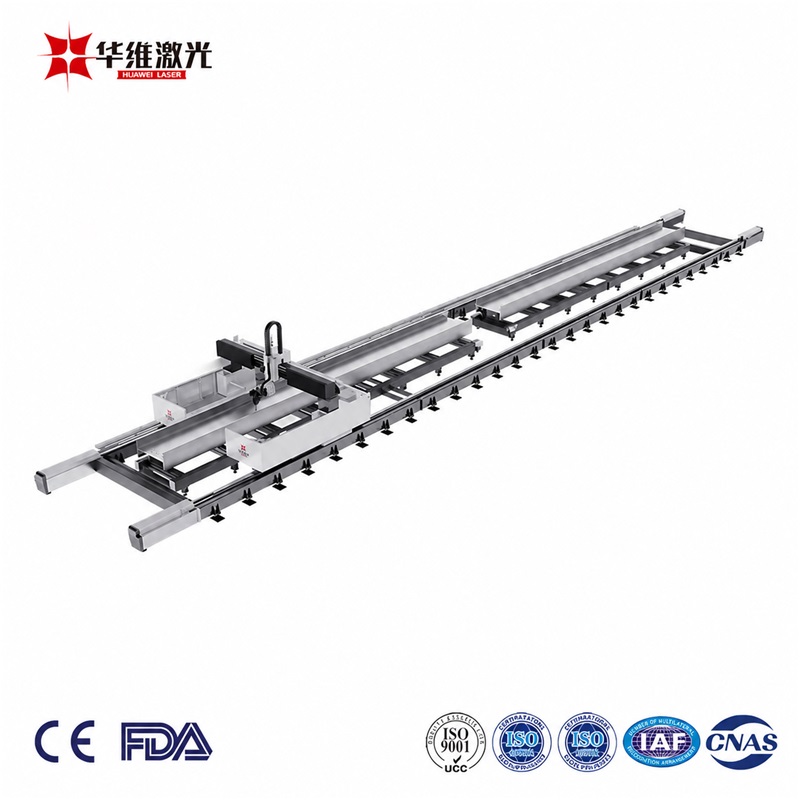

HUAWEI LASER HWH-Series H-Beam Laser Cutting Machine is an industrial solution for structural steel fabrication, featuring automatic profile scanning, RTCP control, and bevel cutting capabilities. Equipped with the professional H-beam processing system, it supports CNC-based profile processing and functions such as automatic nesting, marking, and Tekla integration. Designed for steel structure manufacturers, bridge fabrication, and heavy equipment production, this H-beam laser cutting machine helps streamline complex cutting workflows and improve production efficiency.

Multi-Profile Laser Cutting

One Machine for Diverse Structural Steel Processing

Structural steel manufacturers often work with different profile shapes, dimensions, and cutting requirements. The HWH-Series is designed to support a range of profile processing operations, helping manufacturers handle multiple production tasks with a dedicated CNC laser cutting system.

Depending on the selected machine configuration, processing capabilities can include:

• H-Beam Cutting: Processing H-shaped steel for structural fabrication and industrial applications.
• Bevel Cutting: Producing specified angled edges for downstream assembly and welding preparation.
• Tube and Profile Cutting: Processing compatible round tubes, square and rectangular tubes, channels, and angle steel on configurations equipped for these operations.
• Plate Cutting: Supporting flat sheet or plate cutting where the selected machine configuration includes this capability.
• Specialized Profile Processing: Adapting cutting programs to different profile dimensions and production requirements.

By integrating multiple processing functions into an appropriate machine configuration, HUAWEI LASER helps manufacturers plan a more flexible structural steel production workflow.

Professional CNC Control System

The HWH-Series uses the FSCU 9200 professional H-beam processing system from Bochu, integrating processing software, CNC control, and machine motion functions.

The system is designed to support the workflow from profile modeling and cutting preparation to machine operation.

Key Software and Control Features

• CAD-Based Processing: Supports preparation and management of profile cutting geometry.
• RTCP One-Click Calibration: Provides a calibration function for the coordinated cutting system.
• Automatic Nesting: Supports cyclic nesting functions to help organize cutting layouts.
• Automatic Marking: Provides automatic marking functionality for supported processing workflows.
• Interference Protection: Helps identify or prevent potential motion interference within the supported system workflow.
• Production List Import: Supports importing production lists to simplify job preparation.
• Tekla Integration: Supports integration with Tekla workflows as specified in the technical solution.
• Weld-Hole Processing: Supports designated processing operations for weld access holes where required by the programmed component design.

These functions help connect engineering preparation with shop-floor cutting operations, reducing fragmented manual work and supporting more organized production management.

Intelligent Cutting Head and Monitoring

Designed for Controlled Industrial Processing

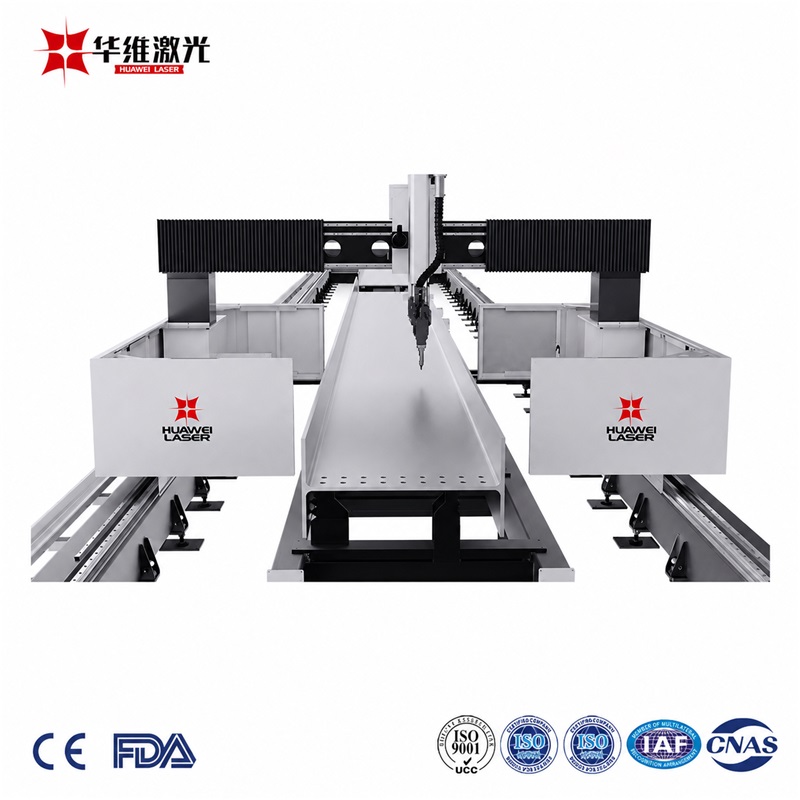

The machine configuration includes a BLT laser cutting head, a dedicated profile cutting head specified for laser cutting power up to 20kW.

• Real-Time Connectivity: Supports communication between the cutting head and the control system.
• Temperature Monitoring: Helps monitor cutting-head temperature conditions.
• Seal Failure Monitoring: Provides monitoring for specified sealing-related faults.
• Collision Protection: Helps protect the cutting head in supported collision events.
• Cutting Gas Pressure Detection: Monitors cutting gas pressure conditions.

These functions support process monitoring and equipment protection. Actual availability and response depend on the installed components, system configuration, and operating conditions.

Technical Specifications

HWH-Series H-Beam Laser Cutting Machine

Cutting Sample

Applications of H-Beam Laser Cutting Machines

For Structural Steel and Heavy Fabrication

The HWH-Series is designed for manufacturers processing structural steel components and related metal profiles.

Typical application sectors include:

• Steel Structure Manufacturing: Processing H-beams and other structural steel components for fabrication and assembly.
• Bridge Construction: Cutting structural steel parts used in bridge manufacturing.
• Construction Machinery: Processing compatible steel profiles and structural components.
• Heavy Equipment Manufacturing: Supporting metal fabrication for industrial equipment.
• Industrial Metalworking: Processing compatible profiles for customized manufacturing projects.

Application suitability depends on the workpiece dimensions, material specifications, and selected machine configuration.

Why Choose HUAWEI LASER?

HUAWEI LASER provides support throughout the equipment project, including:

• Application Consultation: Discuss cutting materials, profile dimensions, and processing requirements.
• Configuration Planning: Evaluate machine specifications and suitable system options.
• Installation and Commissioning: Technical assistance for equipment installation and startup.
• Operator Training: Training in machine operation, software use, maintenance, and basic troubleshooting.
• After-Sales Support: The supplied proposal specifies a one-year warranty for non-human-caused damage and lifetime maintenance services.

Our team can work with you to evaluate your production requirements and prepare a suitable H-beam laser cutting solution.
