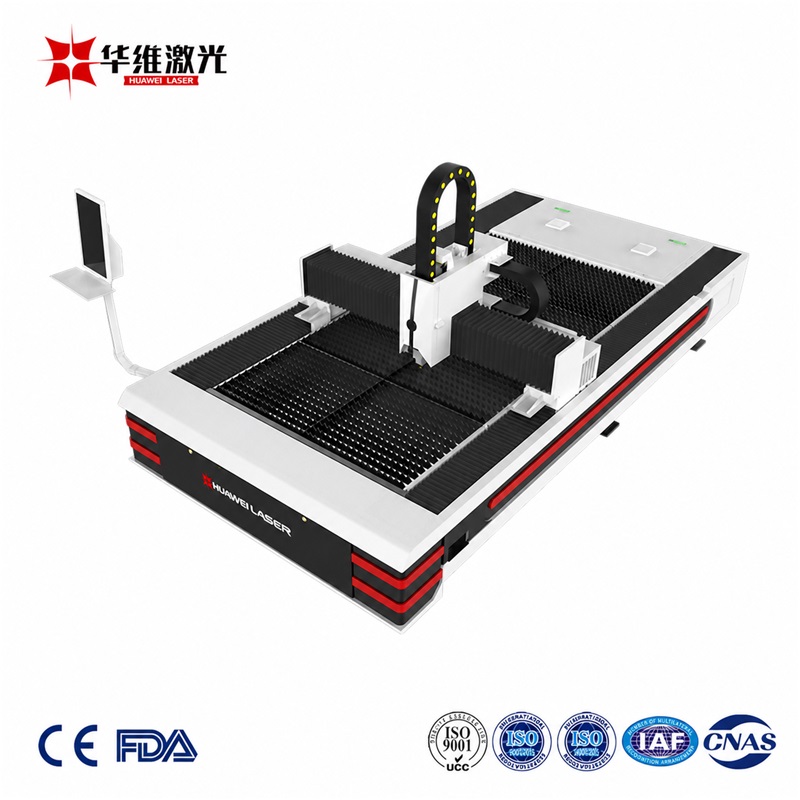

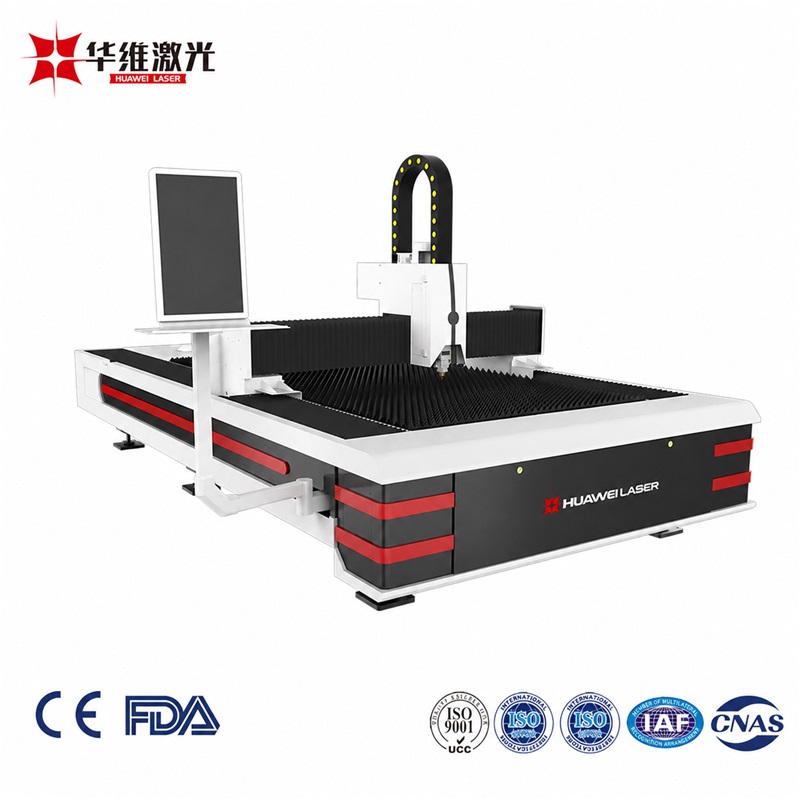

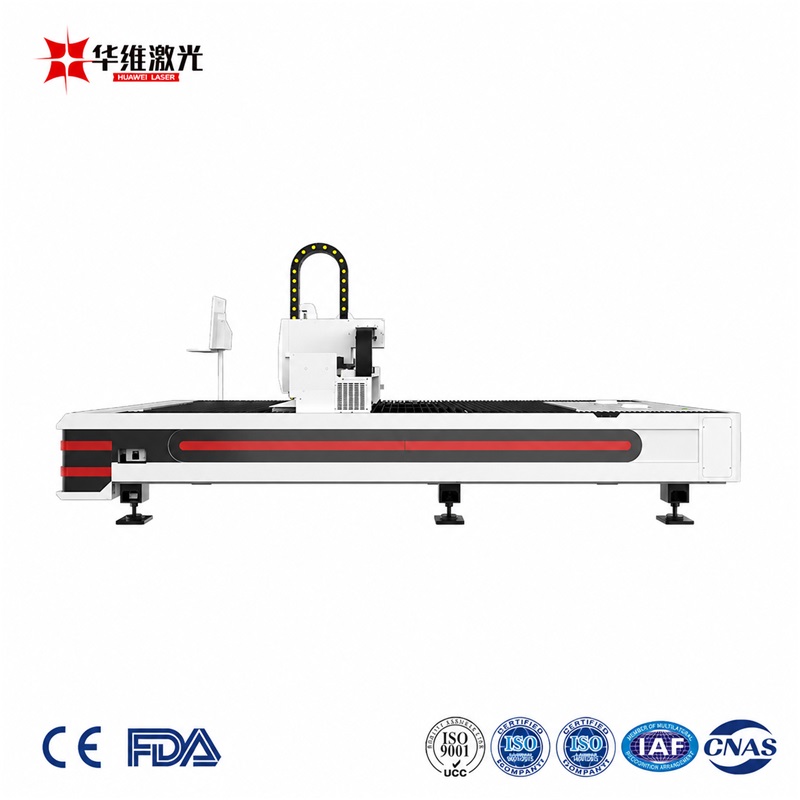

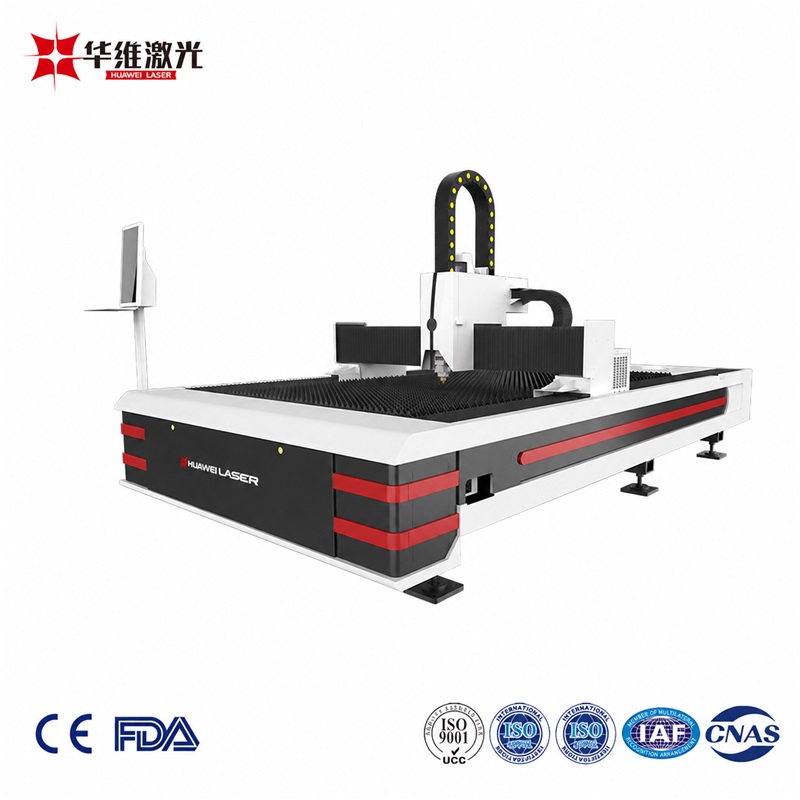

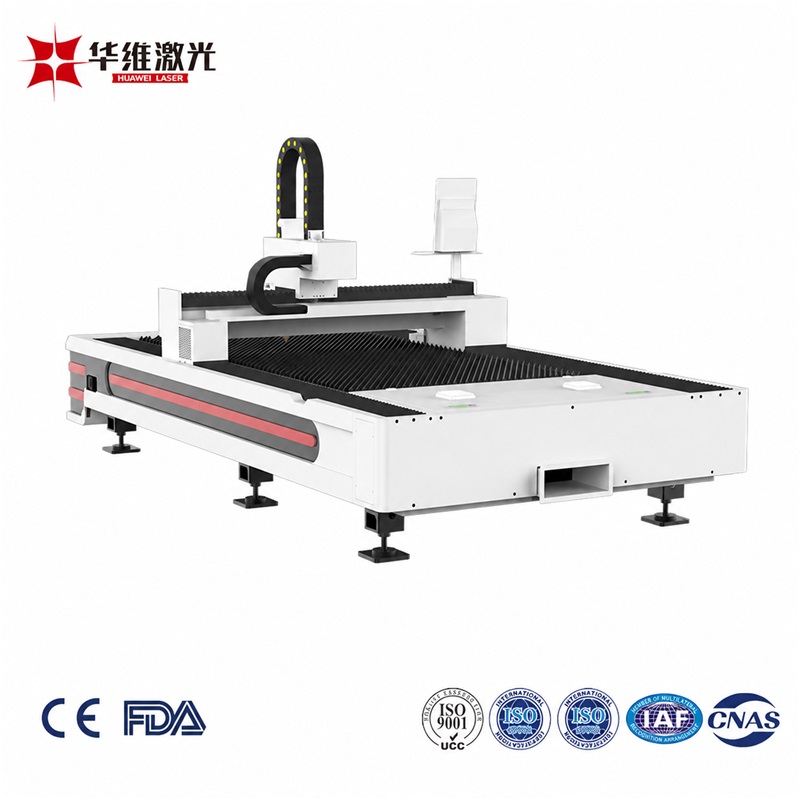

HWS-3015 Laser Cutting Machine
HUAWEI LASER supplies the HWS-3015 Fiber Laser Cutting Machine with 1500–12000W power options and a 3000 × 1500 mm cutting area. Equipped with advanced fiber laser technology, it ensures smooth cuts, high-quality edges, and minimal thermal distortion on a wide range of metals, including stainless steel, carbon steel, aluminum, and more.
Products Description
The HWS-3015 Fiber Laser Cutting Machine offers a 3000 × 1500 mm cutting area and 1500–12000W power options for different metal sheet cutting needs. Its open-bed configuration provides a open cutting platform for handling different sheet sizes, while the gantry structure, fiber laser system and CNC automatic control work together to deliver a practical solution for daily metal fabrication. Available in multiple customized machine sizes and laser power configurations, it can be matched to different material dimensions, cutting requirements and production volumes. With easy operation, high cutting efficiency and a user-friendly interface, it is an ideal choice for workshops, manufacturers and customized metal processing businesses.
Main component parts
Protected Cutting Head, Easier Maintenance
Anti-collision protection helps reduce the risk of cutting head damage. Gas pressure and protective lens contamination monitoring support reliable operation, while the drawer-style lens design makes inspection and replacement easier.
Rigid Bed and Aluminum Beam
The plate-welded machine bed and aluminum beam provide structural support for controlled cutting motion. The supplied bed specification includes multiple stages of heat treatment
Heat-Treated Welded Bed for Lasting Stability
The plate-welded machine bed provides a rigid foundation for cutting. Multi-stage heat treatment helps relieve welding stress and reduce deformation, supporting dimensional stability and consistent performance over time.
HWS-3015 Technical Specifications
| Item | Specification |
|---|---|
| Model | HWS-3015 |
| Cutting area | 3000 × 1500 mm/ Customized |
| Laser power options | 1500–12000W |
| Worktable type | Single platform |
| X-axis travel | 1500 mm |
| Y-axis travel | 3000 mm |
| Z-axis travel | 150 mm |
| X/Y positioning accuracy* | ±0.03 mm/m |
| Repeat positioning accuracy* | ±0.02 mm/m |
| Listed cutting accuracy* | ±0.05 mm/m |
| Maximum feed speed* | 100 m/min |
| Z-axis control | CNC with capacitive height tracking |
| Cooling system | Water cooling |
Match Laser Power to Your Material and Thickness
Use the reference figures below to begin your selection. For production planning, share your material grade and required edge quality so we can review suitable power and process conditions.
| Material | 1500W | 3000W | 6000W | 12000W |
|---|---|---|---|---|
| Carbon steel | 16 mm | 22 mm | 25 mm | 40 mm |
| Stainless steel | 6 mm | 10 mm | 20 mm | 35 mm |
| Aluminum | 4 mm | 8 mm | 18 mm | 30 mm |
| Brass | 3 mm | 6 mm | 14 mm | 16 mm |
| Copper | — | 4 mm | 8 mm | 10 mm |
Cutting Samples
Machine Assembly and Accuracy Checks
Why Choose HUAWEI LASER?
Founded in April 2017, HUAWEI LASER has emerged as a leading enterprise in the laser equipment field, driven by its unwavering commitment to innovation, quality, and customer satisfaction. With a professional team of over 100 members, we specialize in the R&D, manufacturing, and service of laser equipment, dedicated to addressing the most complex challenges our clients face. Leveraging cutting-edge technology and sustainable practices, we deliver holistic solutions and forward-looking strategies. We welcome agents, distributors, and OEM partners to join us on our journey and build long-term partnerships based on trust and shared success.
Located in Shenyang, China, HUAWEI LASER serves customers in over 60 countries and regions worldwide. Our product portfolio covers laser cutting, laser welding, laser cleaning, and robotic welding & cutting workstations, supporting businesses from startups to Fortune 500 companies.
With more than 30 technical patents, our products are certified with CE ,FDA and EAC standards, while our manufacturing processes comply with ISO9001, ISO14001, and ISO45001 management systems, ensuring reliable quality and professional service.
