HWLC Series Laser Cleaning Machine
HUAWEI LASER presents the Professional Water-Cooled Handheld Laser Cleaning Machine, delivering strong power for heavy-duty rust, paint, and oxide removal. Designed for long-time industrial use, it ensures consistent performance, factory-direct pricing, and stable stock for fast bulk delivery.
Products Description

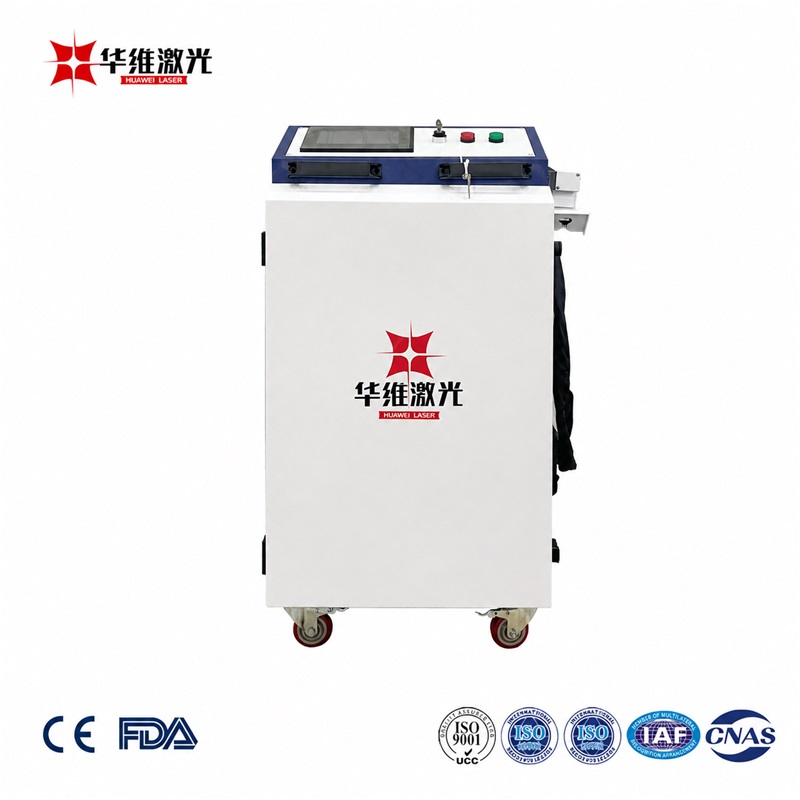

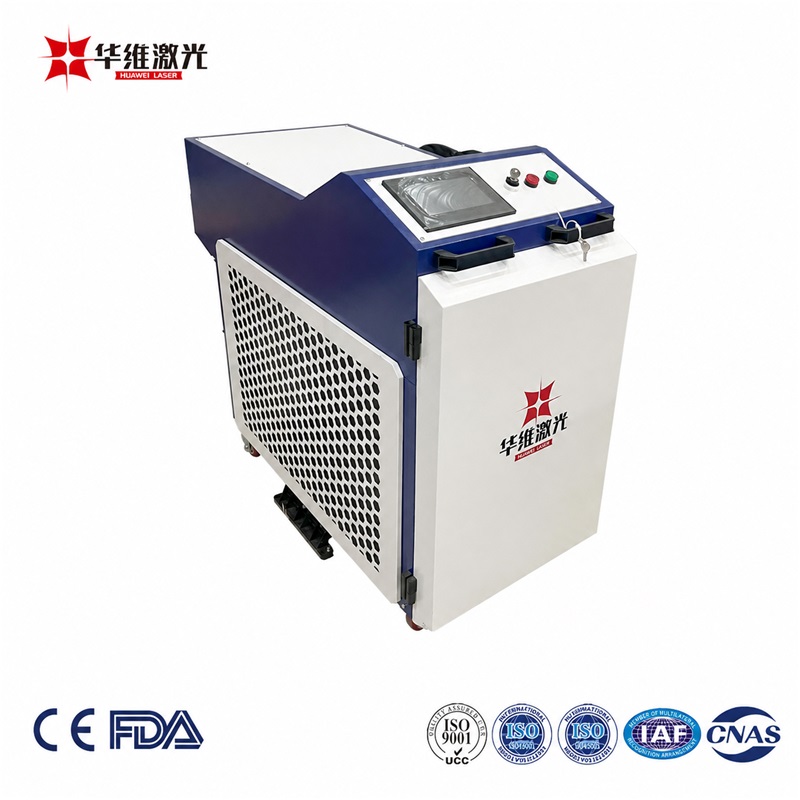

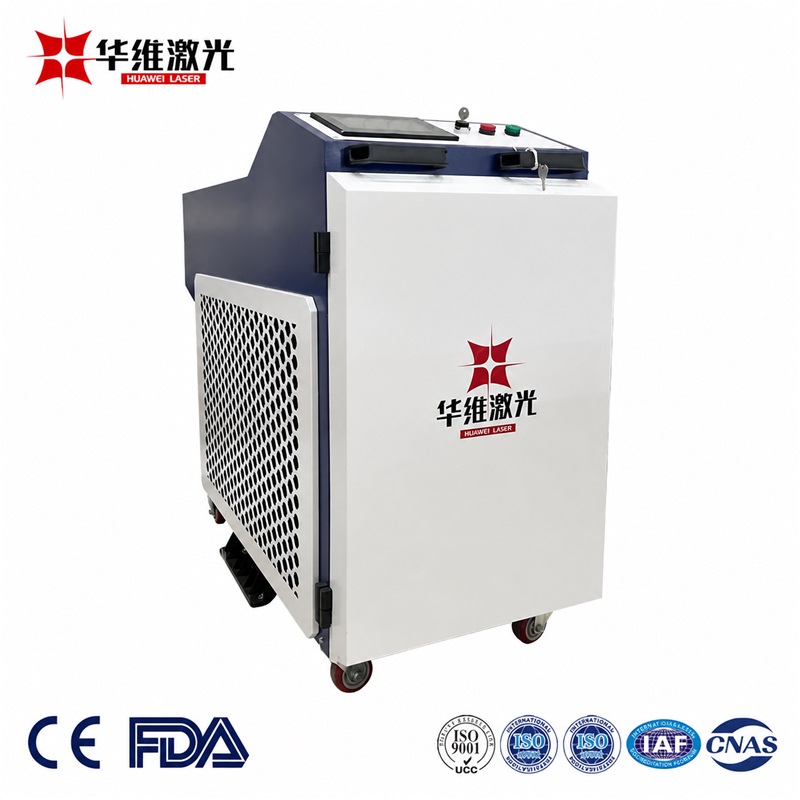

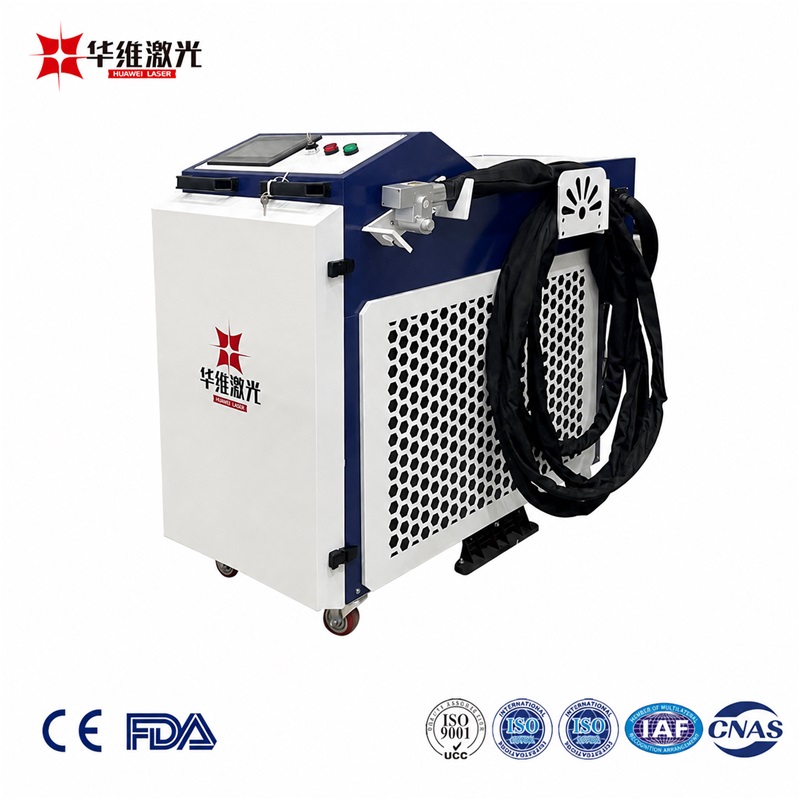

The HUAWEI LASER HWLC Series Handheld Laser Cleaning Machine is designed for industrial surface preparation, helping remove rust, paint, and oil stains from metal surfaces. Equipped with a Raycus / Max fiber laser source, a SUP22C handheld cleaning head, and a HanLi water cooling chiller, it provides a flexible solution for a range of metal cleaning tasks. This machine provides non-contact, eco-friendly surface treatment for wild applications, without the use of chemicals or abrasives. The handheld design allows flexible operation and easy handling, making it widely used in metal processing, automotive, shipbuilding, and machinery maintenance. With factory-direct pricing, reliable quality, and energy-saving performance, it is your trusted choice for professional industrial cleaning applications.
Key Features
-
Non-Contact Cleaning – Cleans surfaces without physical contact.
-
Substrate Protection – Minimizes damage to the base material.
-
No Consumables Required – Reduces operating costs and waste.
-
Energy-Efficient & Eco-Friendly – Supports sustainable, low-waste cleaning.
-
Powerful Contaminant Removal – Removes resin, oil, stains, rust, coatings, cladding, and paint.
Product Configuration
Technical Parameters
| Specification | HWLC-1500 | HWLC-2000 | HWLC-3000 |
|---|---|---|---|
| Laser Power | 1500W | 2000W | 3000W |
| Operating Voltage | Single-phase 220V ±10%, 50/60Hz | Single-phase 220V ±10%, 50/60Hz | Three-phase 380V, 50/60Hz |
| Maximum Power Consumption | 7.5 kW | 10 kW | 15 kW |
| Net Weight | 82 kg | 85 kg | 140 kg |
| Cooling Type | Water cooling | Water cooling | Water cooling |
| Cooling Water Flow | >12 L/min | >15 L/min | >25 L/min |
| Operating Temperature | 10–40°C | 10–40°C | 10–40°C |
| Operating Humidity | Below 70% | Below 70% | Below 70% |
| Machine Dimensions (L × W × H) | 1000 × 440 × 800 mm | 1000 × 440 × 800 mm | 1150 × 550 × 1000 mm |
Cleaning Efficiency
| Model | Rust | Paint | Oil Stains |
|---|---|---|---|
| HWLC-1500 / 1500W | 45 m²/h | 45 m²/h | 60 m²/h |
| HWLC-2000 / 2000W | 60.5 m²/h | 60.5 m²/h | 80 m²/h |
| HWLC-3000 / 3000W | 95 m²/h | 95 m²/h | 140 m²/h |
